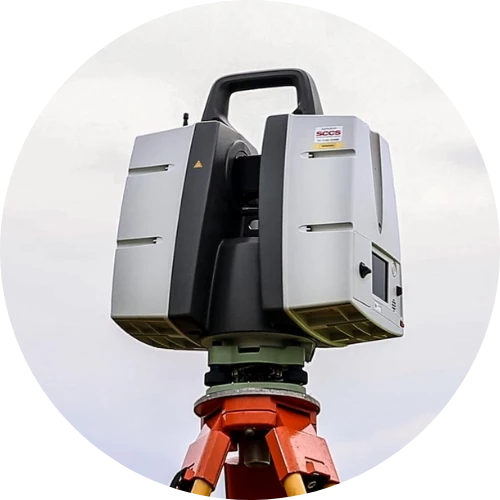

Laser Scanner

Point cloud surveys are captured using Laser Scanners to gather vast amounts of detailed information quickly and accurately. The gathered information can then be used to generate a BIM of the surveyed building or structure. The captured digital ‘Point Cloud’ information contains detail points of all the structures and features within a 360 degree view and this data can be used to generate the geometry of the building and the fixtures and fittings within it.

All of our Laser Scanners are equipped with in-built High-Definition cameras which are used to capture Hi-resolution images of each scan. These can be captured in colour or greyscale as seen below and create a permanent record of the building or sites structure and condition. They can be used to colourise the Point Cloud, prepare video walk-throughs and can also be used for condition assessment purposes.

3D Models provide a graphical image or digital representation of a building or structure, providing the user with a clearer understanding of the project. This not only makes visualising the building easier, but also allows the user to make alterations and changes to the building and see how these will affect the building visually and structurally.

Mobile mapping is carried out by placing laser scanners on to a moving vehicle and driving around a site or along a highway to gather data which is then used to create a point cloud of the survey area. This technique is especially useful where lengths of highway require a topographical survey, but access is restricted by traffic permitting. Traffic Management can be expensive and causes disruption to the traffic network. Mobile Mapping removes the need for Traffic Management because the survey is performed at normal driving speeds and in a fraction of the time. The required detail, such as kerb lines and road furniture are then digitally extracted from the Point Cloud in an office environment to produce a 3D CAD drawing.
